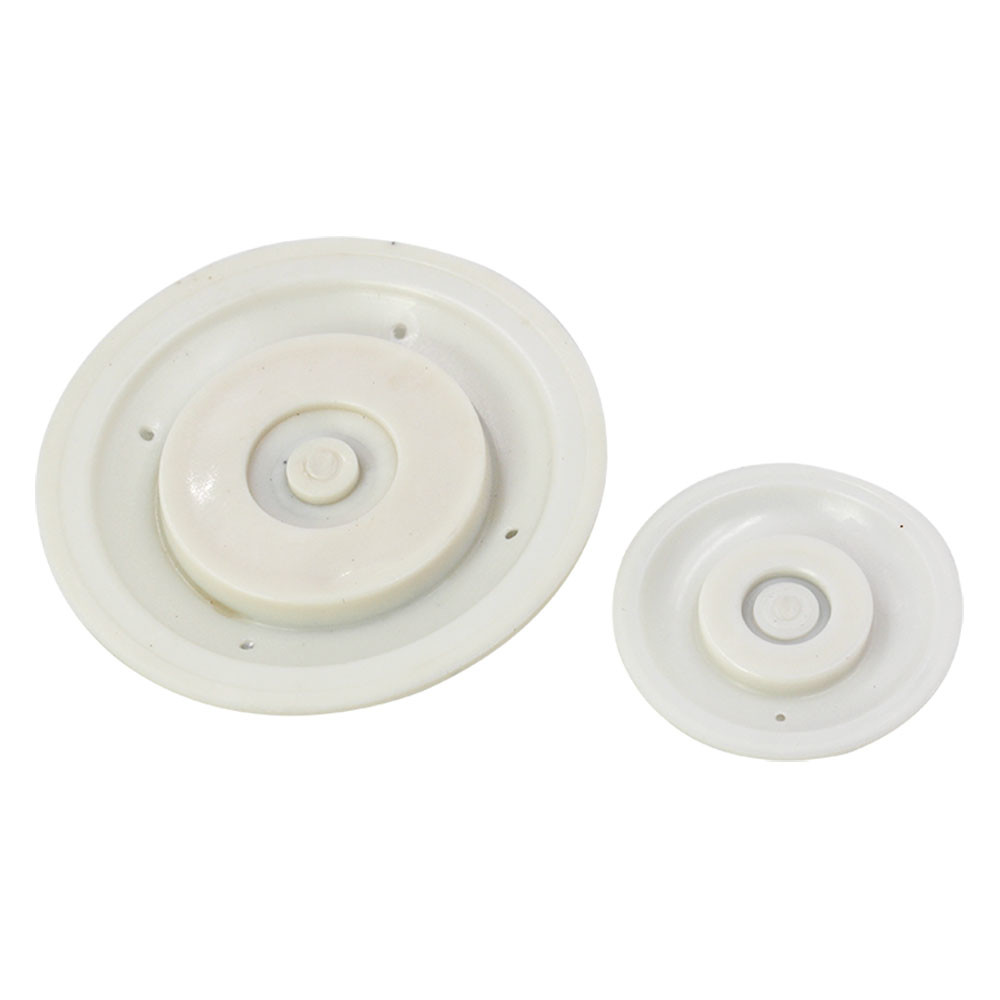

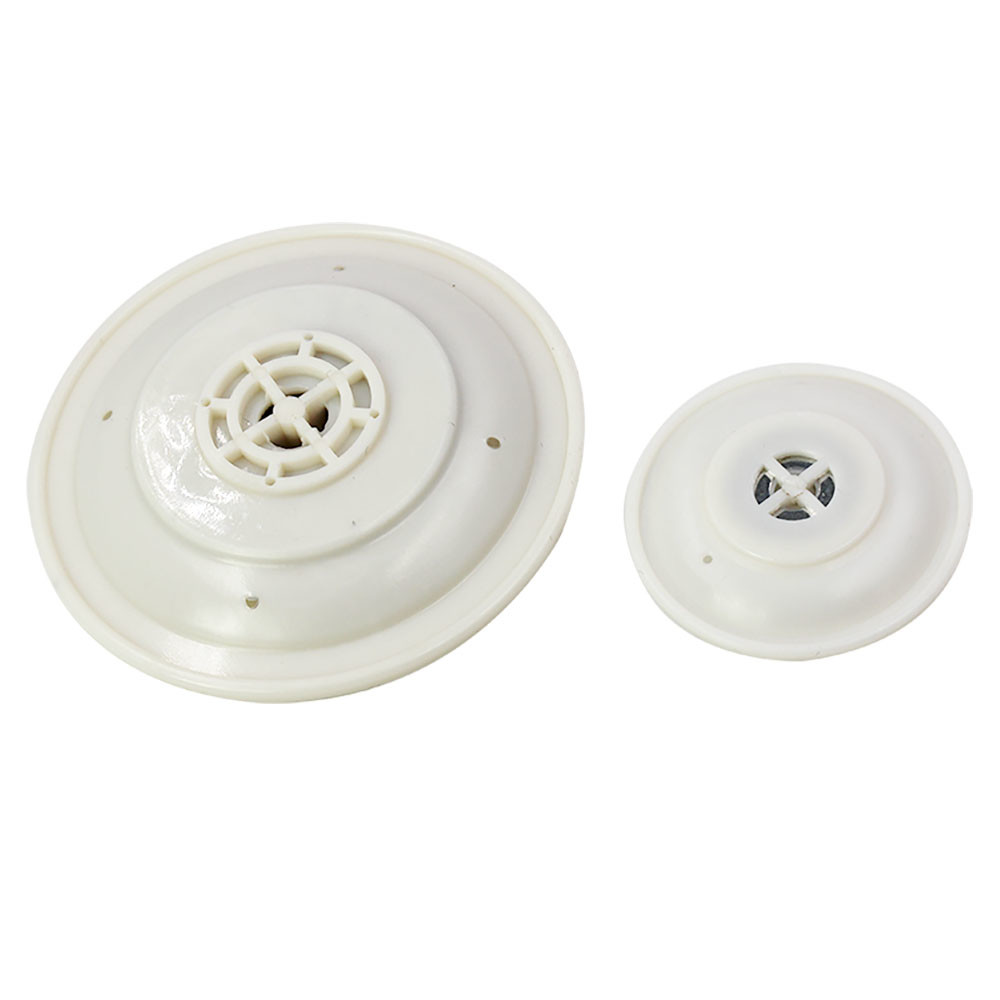

Product Description:
Material Properties
Main Materials: Typically made of high-quality elastomers (e.g., natural rubber, synthetic rubber like EPDM, NBR, or silicone), often combined with reinforcing fabrics (e.g., nylon or polyester) for enhanced durability.
Chemical Resistance: Resistant to common industrial gases, dust, and moderate chemical exposure, depending on the specific material grade.
Temperature Tolerance: Capable of operating within a wide temperature range (e.g., -20°C to 80°C for standard types; higher-temperature variants may withstand up to 150°C or more).
Mechanical Properties
Flexibility & Elasticity: Exhibits excellent resilience to repeated flexing, ensuring long service life under cyclic pneumatic actuation.
Tensile Strength: High tensile and tear resistance to withstand pressure fluctuations in pulse jet cleaning systems.
Sealing Performance: Precise geometry and material elasticity ensure airtight sealing when the valve is closed, minimizing leakage.
Structural Properties
Thickness: Customizable thickness (e.g., 1-3 mm) to balance flexibility and pressure resistance for different valve models.
Shape & Design: Matched to the specific pulse valve’s structure, often featuring a domed or flat profile with reinforced edges for secure clamping.
Precision Machining: Uniform surface finish and dimensional accuracy to ensure consistent performance across batches.
Operational Properties
Response Speed: Rapid opening and closing under pneumatic pressure, enabling short pulse durations (millisecond-level response).
Cycle Life: Capable of withstanding millions of actuation cycles without significant degradation, depending on operating conditions.
Compatibility: Designed to fit Autel’s range of pulse valves, ensuring interchangeability and easy maintenance.
Environmental Properties
Abrasion Resistance: Resistant to wear from particulate matter in dusty environments (common in industrial filtration systems).
Weatherability: Stable performance in humid, dry, or moderately corrosive atmospheres, suitable for indoor and outdoor applications.
These properties collectively enable Autel pulse valve diaphragms to deliver reliable performance in industrial dust collection, pneumatic conveying, and other pulse jet cleaning systems.
Technical Parameters:
| Working Temperature: | -10~80℃ |
| Color: | White |
| Medium: | Air |
| Working Pressure: | 0.4~0.8 MPa |
| Material: | Nitrile |
| Screws: | 304 Stainless Steel |
| | Diaphragm Reference No | | | |
| | | AE1818B, AE2818B AE1822B, AE2822B | | TPE (Standard) FKM+PTFE (High Temperature) |
| | | AE1825B, AE2825B AE1825R, AE2825R | |
| | | AE1440B, AE2440B AE1440R, AE2440R | |
| | | AE1450B, AE2450B AE1460B, AE2460B | |
| | | | |
Applications:
The Autel Pulse Valve Diaphragm is a high-quality product originating from China, designed for various applications across different industries. This product is ideal for scenarios where precise control of air flow is required, making it suitable for a wide range of environments.
Product Application Occasions and Scenarios:
- Industrial Manufacturing: The Autel Pulse Valve Diaphragm is commonly used in industrial manufacturing processes where air flow control is essential. Its reliable performance and durability make it a preferred choice for applications such as pneumatic conveying systems, dust collection systems, and more.
- Environmental Protection: The Autel Pulse Valve Diaphragm is also well-suited for environmental protection applications, such as air pollution control systems. Its efficient operation helps in maintaining clean air quality by controlling the flow of air and particulate matter.
- HVAC Systems: In heating, ventilation, and air conditioning systems, the Autel Pulse Valve Diaphragm plays a crucial role in regulating air flow to maintain optimal indoor air quality and comfort. Its versatility and compatibility make it a valuable component in HVAC applications.
Key Product Attributes:
- Certification: CE certified, ensuring compliance with international quality and safety standards.
- Minimum Order Quantity: 1 unit, allowing for flexible procurement based on specific requirements.
- Packaging Details: Each unit is carefully packaged in a carton for secure transportation and storage.
- Delivery Time: Orders are typically delivered within 1-7 working days after payment confirmation, ensuring prompt availability.
- Payment Terms: Accepted payment methods include T/T, Western Union, and Paypal, offering convenience and flexibility for customers.
- Supply Ability: With a supply capacity of 5000 pieces per month, the product ensures consistent availability for various demands.
- Material: The product features 304 stainless steel screws, ensuring corrosion resistance and longevity.
- Operating Conditions: The Autel Pulse Valve Diaphragm is designed to operate within a temperature range of -10~80℃ and a working pressure range of 0.4~0.8 MPa, making it suitable for diverse working environments.
- Color: The product is available in a classic white color, adding a clean and professional look to installations.
- Medium: Specifically designed for air applications, the product is optimized for efficient air flow control.
Overall, the Autel Pulse Valve Diaphragm is a versatile product suitable for a wide range of applications, offering reliable performance, durability, and ease of installation. Whether used in industrial settings, environmental protection projects, or HVAC systems, this product delivers consistent results and contributes to enhanced operational efficiency.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm designed for pulse valves
Material: Durable rubber
Package Includes: 1 x Pulse Valve Diaphragm
Shipping Method: Standard shipping
Shipping Time: 3-5 business days
