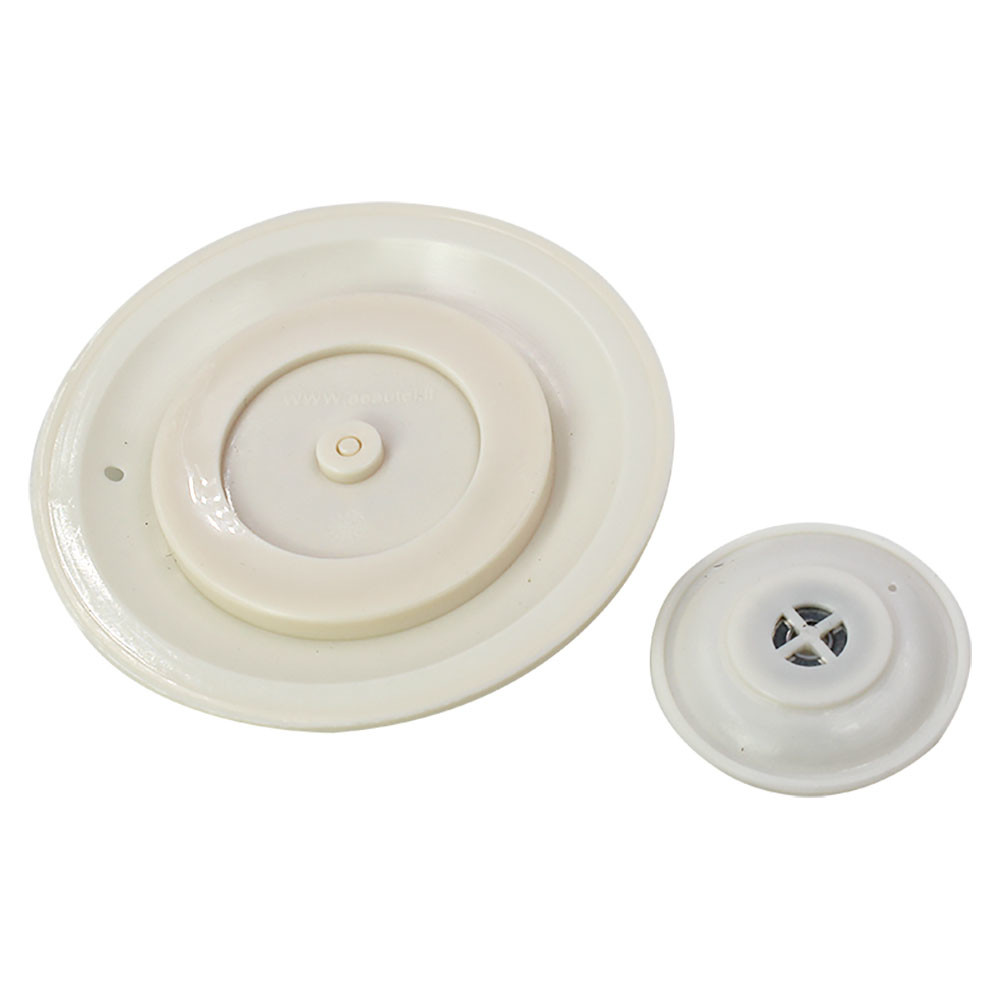

Product Description:
Material Properties
Main Materials: Typically made of high-quality elastomers (e.g., natural rubber, synthetic rubber like EPDM, NBR, or silicone), often combined with reinforcing fabrics (e.g., nylon or polyester) for enhanced durability.
Chemical Resistance: Resistant to common industrial gases, dust, and moderate chemical exposure, depending on the specific material grade.
Temperature Tolerance: Capable of operating within a wide temperature range (e.g., -20°C to 80°C for standard types; higher-temperature variants may withstand up to 150°C or more).
Mechanical Properties
Flexibility & Elasticity: Exhibits excellent resilience to repeated flexing, ensuring long service life under cyclic pneumatic actuation.
Tensile Strength: High tensile and tear resistance to withstand pressure fluctuations in pulse jet cleaning systems.
Sealing Performance: Precise geometry and material elasticity ensure airtight sealing when the valve is closed, minimizing leakage.
Structural Properties
Thickness: Customizable thickness (e.g., 1-3 mm) to balance flexibility and pressure resistance for different valve models.
Shape & Design: Matched to the specific pulse valve’s structure, often featuring a domed or flat profile with reinforced edges for secure clamping.
Precision Machining: Uniform surface finish and dimensional accuracy to ensure consistent performance across batches.
Operational Properties
Response Speed: Rapid opening and closing under pneumatic pressure, enabling short pulse durations (millisecond-level response).
Cycle Life: Capable of withstanding millions of actuation cycles without significant degradation, depending on operating conditions.
Compatibility: Designed to fit Autel’s range of pulse valves, ensuring interchangeability and easy maintenance.
Environmental Properties
Abrasion Resistance: Resistant to wear from particulate matter in dusty environments (common in industrial filtration systems).
Weatherability: Stable performance in humid, dry, or moderately corrosive atmospheres, suitable for indoor and outdoor applications.
These properties collectively enable Autel pulse valve diaphragms to deliver reliable performance in industrial dust collection, pneumatic conveying, and other pulse jet cleaning systems.
Technical Parameters:
| Working Pressure | 0.4~0.8 MPa |
| Working Temperature | -10~80℃ |
| Screws | 304 Stainless Steel |
| Material | Nitrile |
| Color | White |
| Medium | Air |
| | Diaphragm Reference No | | | |
| | | AE1818B, AE2818B AE1822B, AE2822B | | TPE (Standard) FKM+PTFE (High Temperature) |
| | | AE1825B, AE2825B AE1825R, AE2825R | |
| | | AE1440B, AE2440B AE1440R, AE2440R | |
| | | AE1450B, AE2450B AE1460B, AE2460B | |
| | | | |
Applications:
Autel Pulse Valve Diaphragm is a high-quality product designed for various applications in the industrial sector. Its versatility and durability make it suitable for a wide range of product application occasions and scenarios.
One of the key product attributes of the Autel Pulse Valve Diaphragm is its use as a diaphragm repair accessory. It can be easily integrated into pulse valves for maintenance and repair purposes, making it an essential component in diaphragm repair kits.
Originating from China, the Autel Pulse Valve Diaphragm boasts a CE certification, ensuring its compliance with international quality standards. With a minimum order quantity of 1, customers have the flexibility to purchase as per their requirements, and the price is open to negotiation to accommodate varying budget constraints.
The packaging details of the Autel Pulse Valve Diaphragm include a carton, providing secure and convenient storage and transportation. Customers can expect a quick delivery time of 1-7 work days after payment, allowing for swift integration into their operations.
Payment terms for the Autel Pulse Valve Diaphragm include T/T, Western Union, and Paypal, offering multiple options for a seamless transaction process. With a supply ability of 5000 pieces per month, customers can rely on a steady and consistent availability of the product.
Designed for use with air as the medium, the Autel Pulse Valve Diaphragm is constructed from nitrile material in a distinctive white color. It can withstand working pressures ranging from 0.4 to 0.8 MPa, ensuring reliable performance in various industrial settings.
Equipped with 304 stainless steel screws, the Autel Pulse Valve Diaphragm guarantees secure and long-lasting installation, further enhancing its durability and efficiency.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality replacement diaphragm for pulse valves.
Material: Durable rubber
Package Includes: 1 Pulse Valve Diaphragm
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery: 5-7 business days
- Shipping Cost: $5.99
