Product Description:

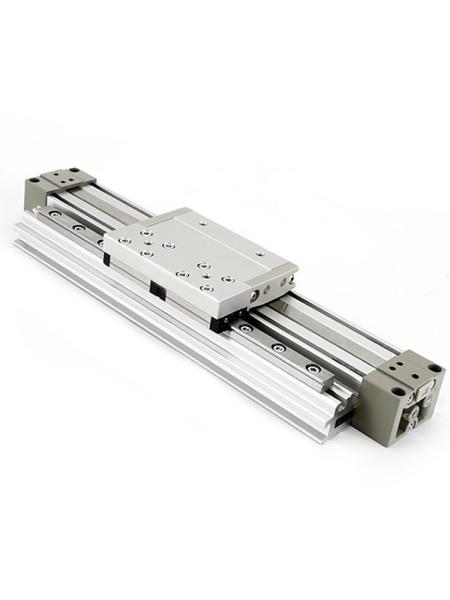

Main Attributes of MY1H Series Cylinders
MY1H series cylinders are known for their exceptional quality and reliability. A few of the main characteristics that make them stand out are as follows:
Cylinder Diameter and Stroke
The cylinder diameter range of MY1H series cylinders varies from 16mm to 63mm, with stroke lengths ranging from 50mm to 2000mm. For some models, the stroke length can even go up to 4000mm and 5000mm, making them suitable for a wide range of applications.
Types of Port Threads
MY1H series cylinders have a variety of port thread types to choose from, including M thread and Rc thread, which makes them ideal for different pipeline connection needs.
Magnetic Switches
Some models of MY1H series cylinders come equipped with contactless magnetic switches. These switches have functions such as direct output and indicator lights and have an applicable voltage range of DC5V, 12V, 24V.
Material
The cylinder barrel, end cap, and piston of MY1H series cylinders are made from lightweight and durable aluminum alloy material, making them perfect for long-term use.
Application Scenarios
MY1H series cylinders are widely used in various industries such as automated assembly lines, printing, robot handling, etc., owing to their precise control and long stroke, thus proving to be of great help in such areas.
Technical Parameters:
| Attribute | Value |
| Type | MY1H Type Mechanical rodless Cylinder |
| Fluid | Air |
| Brand | SMC |
| Bore sizes | 16, 20, 25, 32, 40 (mm) |
| Temperature range | -10—60℃ |
| Model | MY1H Mechanical rodless Cylinder |
| Customizable | Yes |
| Description | Mechanical rodless cylinder suitable for various applications |
Applications:
The Piston Pneumatic Cylinder is designed for linear applications and is suitable for use in a variety of industrial and commercial settings. It is a linear guide type cylinder that is designed to provide precise and accurate movement. The Rodless Cylinder design means that it is compact and can be used in applications where space is limited.
The Piston Pneumatic Cylinder is available in bore sizes ranging from 16mm to 40mm. This makes it an ideal choice for a wide range of applications. It is suitable for use in manufacturing, assembly, packaging, and many other industrial and commercial settings.
The Piston Pneumatic Cylinder is easy to install and maintain. It is a reliable and efficient solution for linear motion applications. It is also very durable and can withstand harsh environments.
The minimum order quantity for the Piston Pneumatic Cylinder is 1 piece. The price is negotiable and depends on the quantity ordered. The packaging details are carton or as required by the client. The delivery time is 1-7 work days after payment is received. The payment terms are T/T, Western Union, and Paypal. The supply ability is 5000 pieces per month.
If you are looking for a reliable and efficient solution for linear motion applications, the Piston Pneumatic Cylinder is a great choice. It is a high-quality product that is made by a leading brand in the industry. It is easy to install and maintain, and it is suitable for a wide range of industrial and commercial applications.
Overall, the Piston Pneumatic Cylinder is a great product for anyone who needs a reliable and efficient linear guide type cylinder that is easy to install and maintain. Its compact design and Rodless Cylinder design make it an ideal choice for applications where space is limited.
Packing and Shipping:
Product Packaging:
- One Piston Pneumatic Cylinder
- Protective foam padding
- Instruction manual
Shipping:
- Ships within 1-2 business days
- Free standard shipping within the US
- International shipping available for an additional fee
