Product Description:

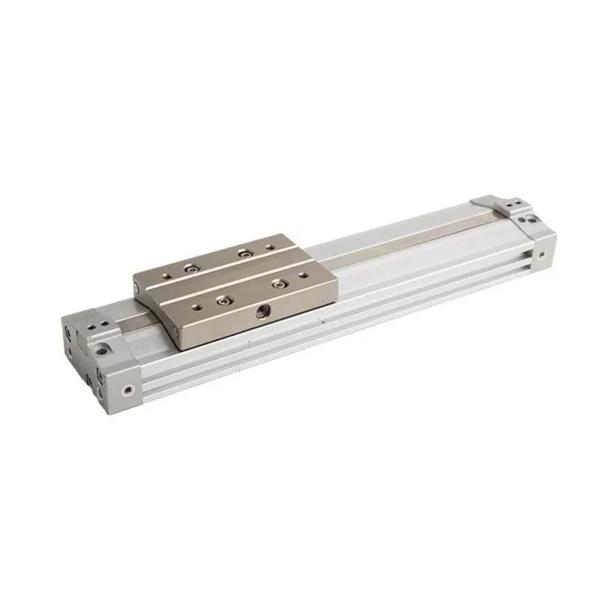

The Main Attributes of MY3A Cylinder
The MY3A cylinder is a mechanical joint rodless cylinder that offers several design features and technical parameters that make it suitable for different industrial applications. Below are the main attributes of MY3A cylinder:
Design Features
The MY3A series cylinder has a mechanical joint rodless design that provides high rigidity and precision to ensure the stability and repeatability of operation. This design also achieves significant space savings by reducing height by up to 36% and overall length by up to 140mm. As a result, it is suitable for applications that require space savings.
Action Mode
The MY3A cylinder adopts a double-acting action mode, which allows it to perform expansion and contraction operations to meet various industrial application needs.
Material
The cylinder barrel, end cover, slide table, and piston are all made of aluminum alloy, which ensures the durability and lightweight of the product.
Technical Parameters
The MY3A cylinder comes in the following technical parameters:
- Cylinder diameter: 25mm
- Cylinder stroke: 200mm
- Fluid used: Air
- Environmental temperature: 5-60 ℃
- Pressure resistance: 1.2 MPa
- Piston speed: 80-500 mm/s
Application Scenario
The MY3A cylinder is suitable for applications that require a large cylinder diameter and long stroke, such as heavy material handling, precise positioning, and other occasions. Its high precision and rigidity make it perform well in situations that require fast response and precise control.
Technical Parameters:
| Attribute | Value |
| Bore sizes | 16, 20, 25, 32, 40 (mm) |
| Temperature range | -10—60℃ |
| Brand | SMC |
| Type | Cylindre |
| Fluid | Air |
| Model | MY1A |
| Customizable | Yes |
Applications:
The model for this product is MY1A, and it is a mechanical joint rodless cylinder. It has a temperature range of -10—60℃, which makes it suitable for use in a variety of environments. The fluid used in this product is air, which is a clean and easily available medium.
The SMC Piston Pneumatic Cylinder can be used in a number of applications, including but not limited to:
- Automotive industry
- Manufacturing industry
- Robotics industry
- Construction industry
This product is particularly suitable for use in scenarios where a MY3A Type Mechanical rodless Cylinder is required. The mechanical joint rodless cylinder ensures that there is no risk of leakage, and the piston is able to move freely. The bore sizes for this product are 16, 20, 25, 32, and 40 mm, which makes it suitable for use in a variety of applications.
Packing and Shipping:
Product Packaging:
- The Piston Pneumatic Cylinder will be securely packaged in a custom-fit box to ensure safe transportation.
- The box will be labeled with the product name, specifications, and handling instructions.
Shipping:
- The Piston Pneumatic Cylinder will be shipped via a reputable carrier to ensure timely and safe delivery.
- Shipping fees will be calculated at checkout based on the customer's location and preferred shipping method.
- Customers will receive a tracking number via email once the product has been shipped.
